Acuvance MerV-ERA 13.5T Motor Black for Sale Great Price & Specs

Black Ace: Acuvance MerV-ERA 13.5T Motor - Unleash the Beast!

Alright, listen up, buttercups! You're not just buying *this*, you're snagging a slice of the goddamn future. This ain't your grandma's whatever-it-is, this is the real deal, the bee's knees, the cat's pajamas! It's got that something, that je ne sais quoi, that'll make your friends jealous and your enemies... well, they'll just wish they had it. Get ready to level up your life, because this is the upgrade you didn't even know you needed. Trust me, you want this. You NEED this. So, what are you waiting for? Click that button and let's make some magic happen!

$140.00 $279.99

num:

description

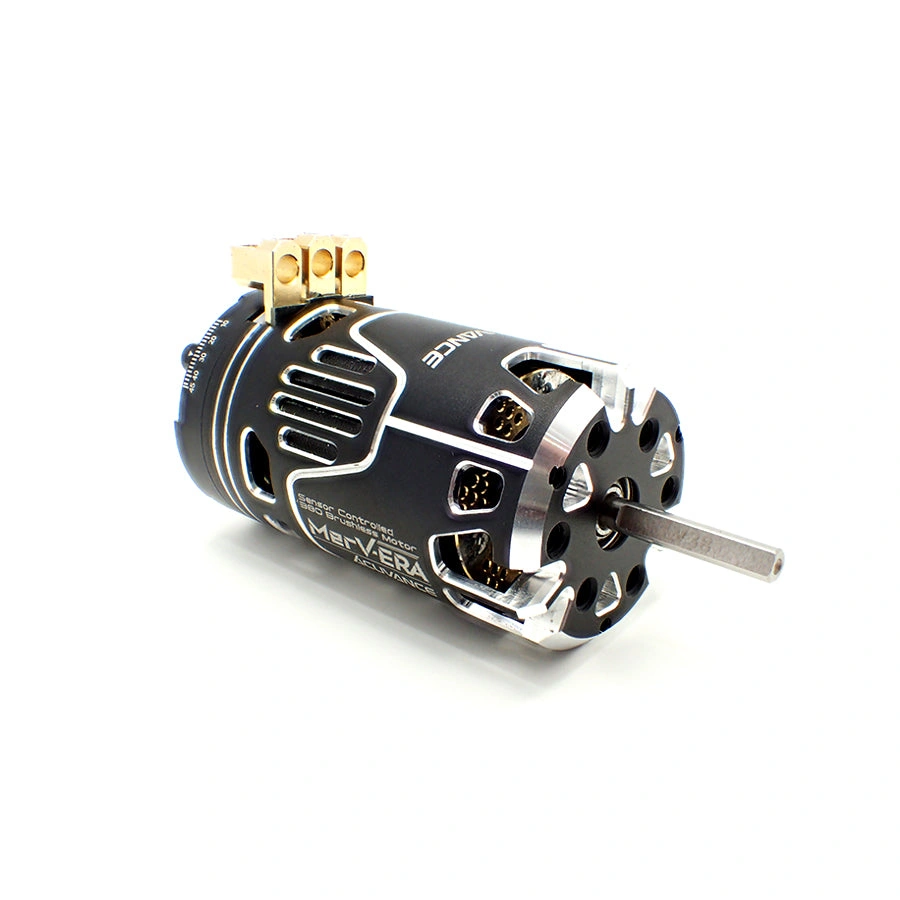

Acuvance MerV-ERA 13.5T Motor - Black

Feature:

Acuvance have condensed the technology we have cultivated so far into a compact case, overturned the concept of 380 motors.
Equipped with the unique system [M・F・C・S] used in AGILE and FLEDGE. Even with a 380 motor with limited internal space, the rotor diameter and weight remain the same, and the characteristics can be changed to a rotation type or torque type without spoiling the original performance of the motor.
Industry innovation that a variable advance system has been installed in a 380 motor. The characteristics can be easily changed to torque type or rotation type.
The rotor-equipped air-cooled fan 'Tri-Blade' used in AGILE has been refined for this product, achieving high cooling performance.
High-rigidity special alloy plate is installed which reduces internal vibrations that occur when the motor is running and affect rotation efficiency.

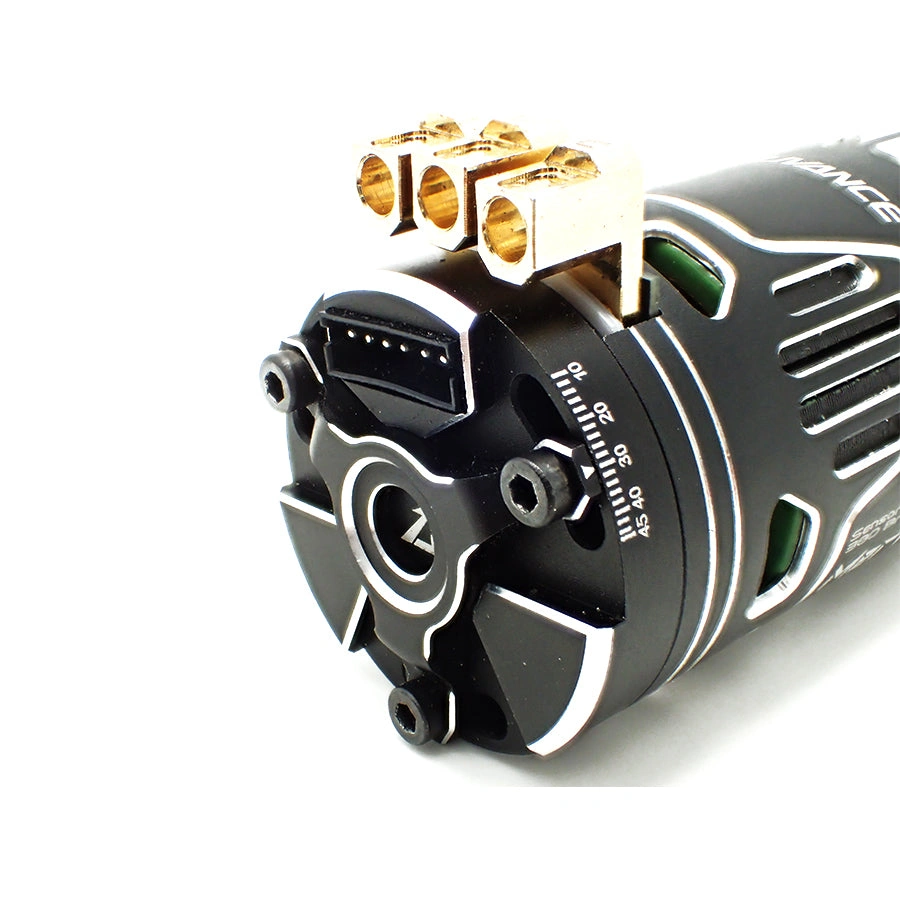

The integration of the power plate that connects the motor connection terminal and the coil transmits power efficiently. Furthermore, the MerV-ERA has a horizontal terminal orientation, and a solder welding surface is secured on the top of the terminal. Direct cable attachment by soldering is also possible.
Compatible with the 'Torque Level/Torque End Mode' program installed with Acuvance brushless ESC. This program is exclusively for users of this product, FLEDGE, and AGILE, and allows you to vary the motor torque level according to surface conditions and car.
By using the optional Acuvance Multi-Angle 540-380 Conversion Plate, MerV-ERA can also be mounted on a motor mount for 540 size.

Specification:

Colour: Black
Motor Size: 380
Type: Sensored Brushless
Turns: 13.5T
Input voltage (V): 4.2V – 8.6V
KV (rpm / V): 4,150
Power consumption (W): 190
Efficiency (%): 92
Standard Rotor: Sintered (Neodymium Magnet) LV38
Coil winding method: Star winding
Weight / Overall Length: 92g / 52mm (between motor mount contact surface and end bell tip)

What is included:
